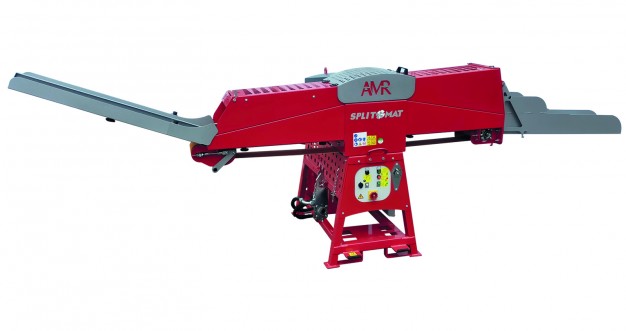

SPLITOMAT

General characteristics

Length of wood to split - 15 or 20 cm adjustable without tools
Ø mini. of wood to split - 50 mm
Ø max. of wood to split - 250 mm
Cutting size adjustable with a clamp knob
Transport with Forklift and crane

SPLITOMAT with Electric drive
- Cycle time In 20/15 cm - 1,87 / 1,50 seconds
- Power supply : 3 x 40 V + neutral + Earth / 16 A with phase inverter
- Oil tank capacity 52 L
- 590 kg

SPLITOMAT P with tractor PTO drive
- PTO speed 300 rpm
- Pump with female multiplier 29cc
- 12 Volt required with 7-pin plug
- 28 cycles per minute ( in setting 20cm )
- No 3-point hitch
- 540 kg

SPLITOMAT ESS with motor drive
- Motor HONDA GX390 13HP ; 18Ah with electric start
- Battery 12V 45Ah
- Pump 9cc
- 31 cycles per minute ( in setting 20cm )
- 615 kg

---

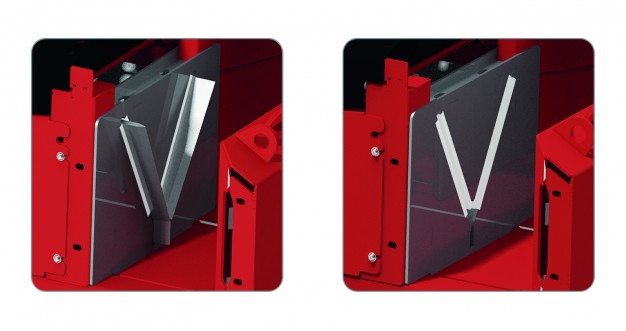

Option : knife for pallet wood
Option for working with pallet wood. Up to 3cm high.
Contains :
- a specific support wheel
- a counter knife
- a Y-shaped knife

Option : Rotabaga for 3 bags of 40 L

Option : Packing table

TECHNICAL CHARACTERISTICS

SPLITOMAT

Length of wood to split (cm) : 15 or 20 adjustable without tools
Ø mini. of wood to split (mm) : 50
Ø max. of wood to split : 250
Oil tank capacity (L) : 52
Splitting force (tons) : 5
Cycle time 20 / 15 cm (s) : 1,87 / 1,50
Power supply : 3 x 400 V + Neutral + Earth
Dimensions (LxWxH cm) : 215 x 250 x 130
Weight (Kg) : 590

SPLITOMAT ESS

Length of wood to split (cm) : 15 or 20 adjustable without tools
Ø mini. of wood to split (mm) : 50
Ø max. of wood to split : 250
Splitting force (tons) : 5
Weight (Kg) : 615
Motor : HONDA GX390 13HP ; 18Ah with electric start
Cycles per minute ( in setting 20cm ) : 31

SPLITOMAT P

Length of wood to split (cm) : 15 or 20 adjustable without tools
Ø mini. of wood to split (mm) : 50
Ø max. of wood to split : 250
Splitting force (tons) : 5
Weight (Kg) : 540
PTO speed : 300 rpm
Cycles per minute ( in setting 20cm ) : 28
