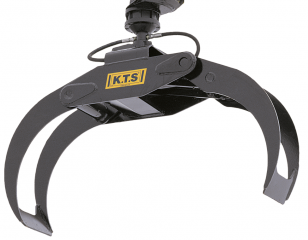

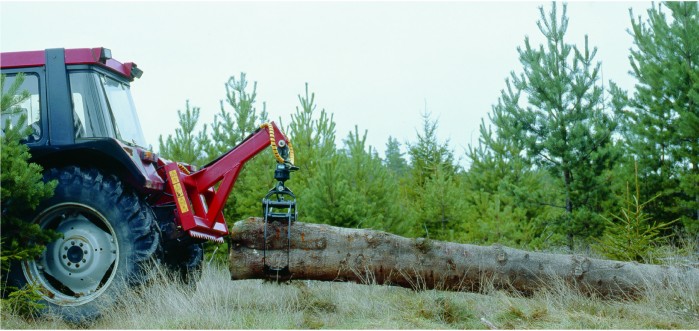

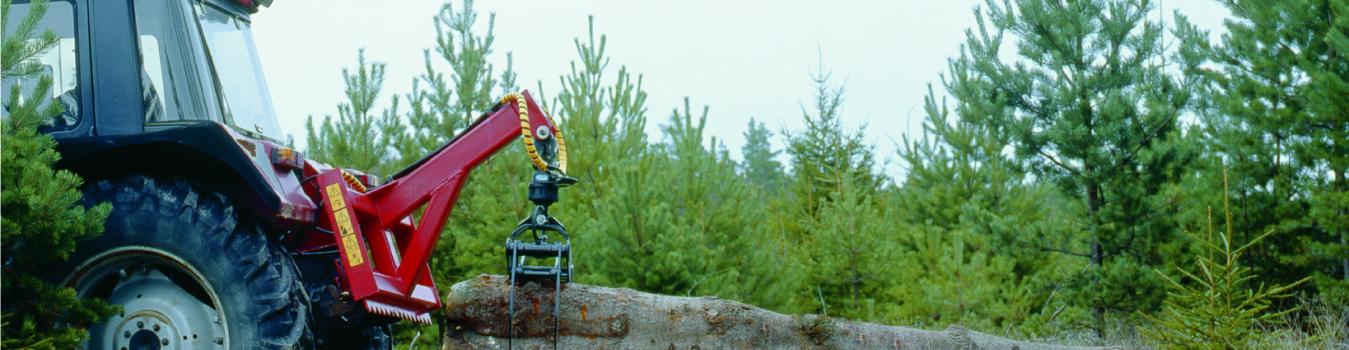

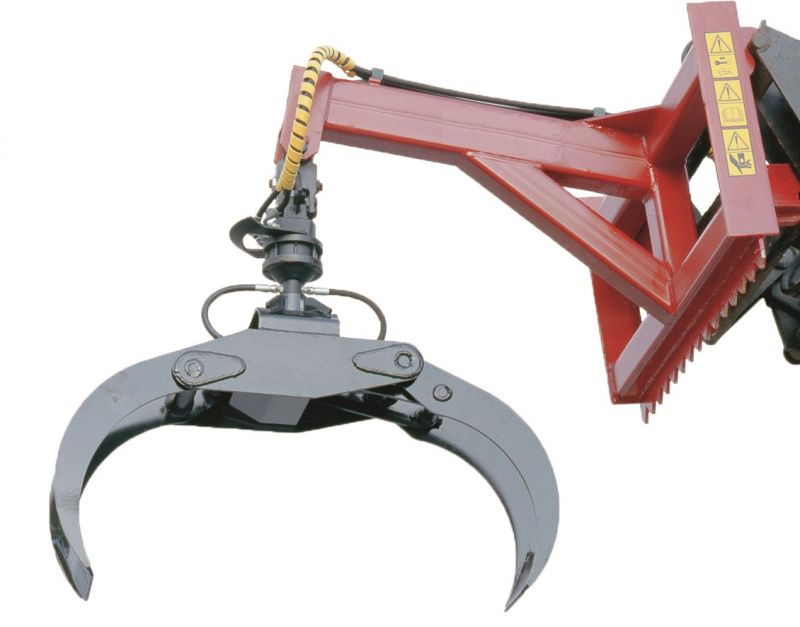

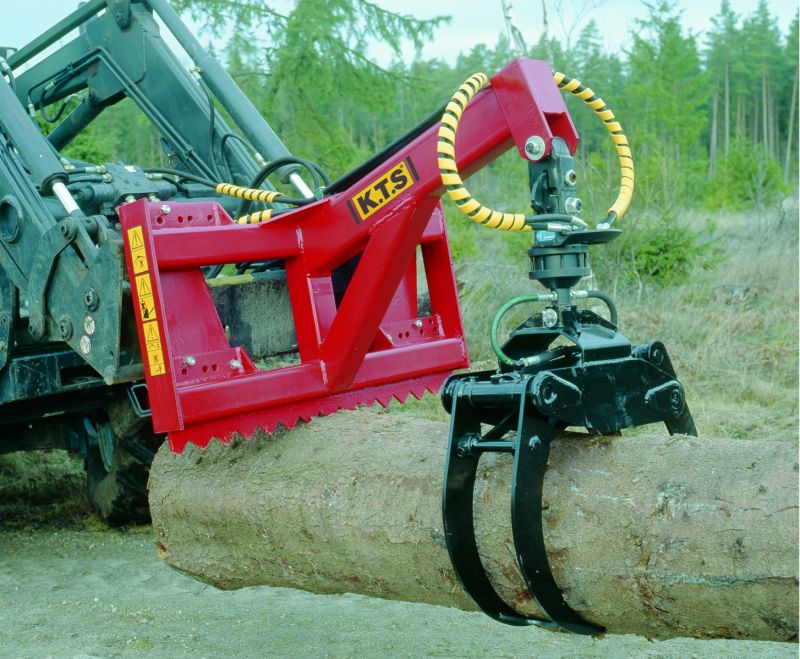

Robust arm grapples for intensive handling.
They can be fitted to front loader with standard EURO hitch and need hydraulic supply from tractor ( double effect required ).


Max. loading : 1 tons
Max. capacity : 0,18 - 0.21 m² depending on the model


Grapples are made of hardox steel for maximum tensile strength and an extended lifetime.This steel also helps to lighten the grapple.

Request for information
Information and quotations

General characteristics

  • Continuous rotation
  • Rotator 3 t / 6 fins
  • Great precision of movement
  • Significant grip strength in order to grab and maintain logs of all sizes
  • Grapple lightness increases its payload
  • All axes are oversized to absorb all charges
  • Optionally, it is possible to adapt the arm on the 3-point hitch for tractor / JCB / Manitou

OPTIONS

  • 3 point hitch adapter
  • Manitou adapter
  • JCB adapter

TECHNICAL CHARACTERISTICS

KG 180 R

  • Loading capacity (to) : 1
  • Useful capacity (m²) : 0,18
  • Max. opening (cm) : 110
  • Steel : Strenx
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150 - 215
  • Weight (kg) : 250

KG 210 R

  • Loading capacity (to) : 1
  • Useful capacity (m²) : 0,21
  • Max. opening (cm) : 130
  • Steel : Strenx
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150 - 215
  • Weight (kg) : 280
