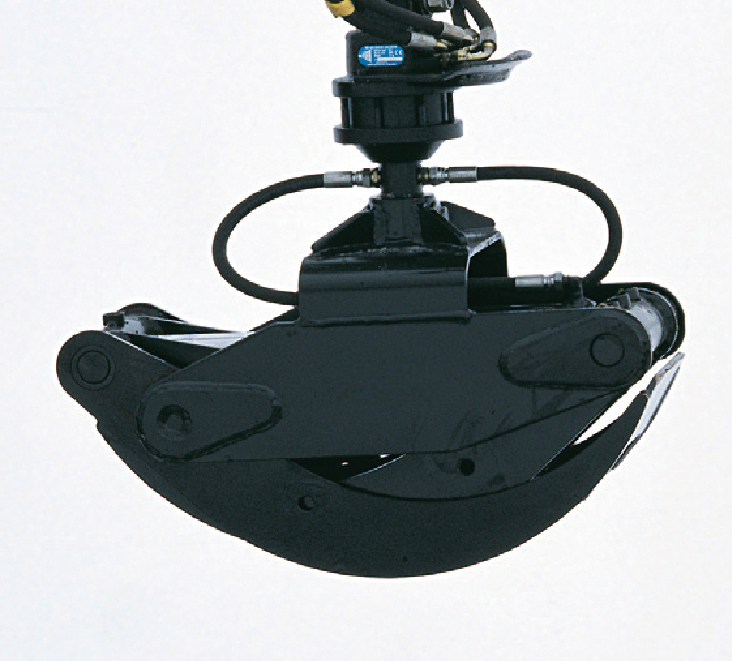

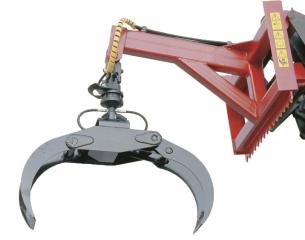

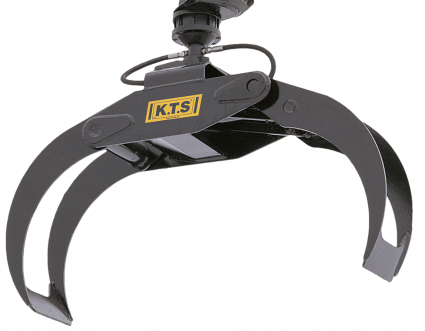

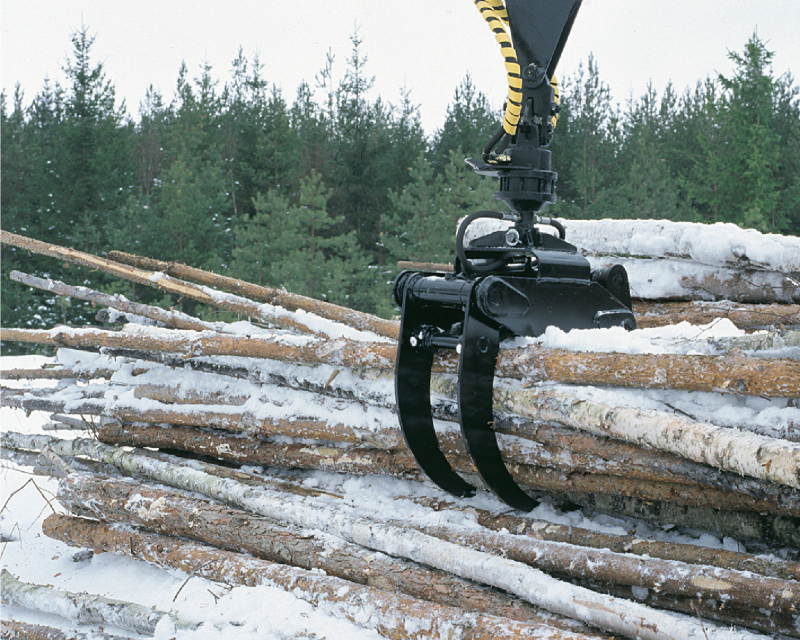

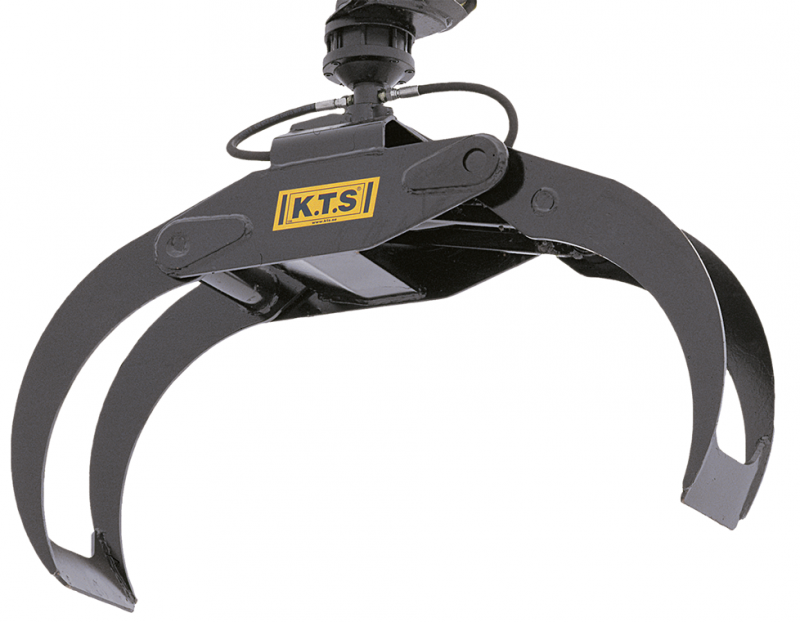

The grapples  KTS are manufactured in reinforced steel for maximum pulling strength and prolonged service life. Use of this steel also makes the grapple lighter. Grapple for bough available

Max. loading : 1 - 3,5 tons depending on the model
Max. capacity : 0,18 - 0.35 m² depending on the model

Options :

When ordering a grapple with rotator, add following hoses kit :

  • FLX00948 for KG180 /  KG210
  • FLX01002 + VIS10009 for KG 225
  • FLX01016 + VIS10010 for KG300 / KG335
Request for information
Information and quotations

TECHNICAL CHARACTERISTICS

KG 180

  • Rotator recommended ( not included ) (to) : 3
  • Max. opening (cm) : 110
  • Max. capacity (m²) : 0,18
  • Max. loading (to) : 1
  • Steel : Strenx
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Shaft Ø 50 mm
  • Weight (kg) : 79

KG 210

  • Rotator recommended ( not included ) (to) : 3
  • Max. opening (cm) : 130
  • Max. capacity (m²) : 0,21
  • Max. loading (to) : 1
  • Steel : Strenx
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Shaft Ø 50 mm
  • Weight (kg) : 83

KG 225 PRO

  • Rotator recommended ( not included ) (to) : 6
  • Max. opening (cm) : 140
  • Max. capacity (m²) : 0,25
  • Max. loading (to) : 2,5
  • Steel : Hardox reinforced
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Flange 6 holes Ø 173 mm
  • Weight (kg) : 141

KG 300 PRO

  • Rotator recommended ( not included ) (to) : 6
  • Max. opening (cm) : 155
  • Max. capacity (m²) : 0,30
  • Max. loading (to) : 3
  • Steel : Hardox reinforced
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Flange 6 holes Ø 173 mm
  • Weight (kg) : 191

KG 335 PRO

  • Rotator recommended ( not included ) (to) : 6
  • Max. opening (cm) : 160
  • Max. capacity (m²) : 0,35
  • Max. loading (to) : 3,5
  • Steel : Hardox reinforced
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Flange 6 holes Ø 173 mm
  • : 248

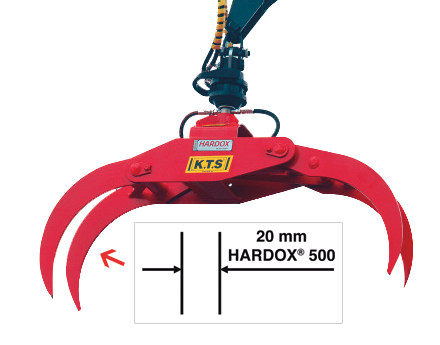

KG/GR21B

  • Rotator recommended ( not included ) (to) : 3
  • Max. opening (cm) : 130
  • Max. capacity (m²) : 0,21
  • Max. loading (to) : 1
  • Steel : Hardox
  • Power at arm’s end (kg) : 700
  • Pressure recommended (bar) : 150-215
  • Adaptation : Shaft Ø 50 mm
  • : 115
